Rope Machine :
Rope Making Machine are available in 3 and 4 strands rope with diameters from 3mm-32mm in different models. we can manufacture any models of Rope Making Machines as per the requirement and the specifications of our valued customers. Ropes can be Made from HDPE Monofilament, PP Tape, PP Multifilament, Nylon, Cotton, Polyester, Synthetic Yarns, Manila in one continuous operation.
Sprocket drive
Rigid construction
Direct coiling head winding
With digital length counter meter
Door sensor, protective door with steel wire mesh
Low noise level, Low maintenance, Easy operation system
Surface of parts are bluing and with plating treatment.
Thermal refining for shaft parts, quenching treatment for gear and sprocket wheel.

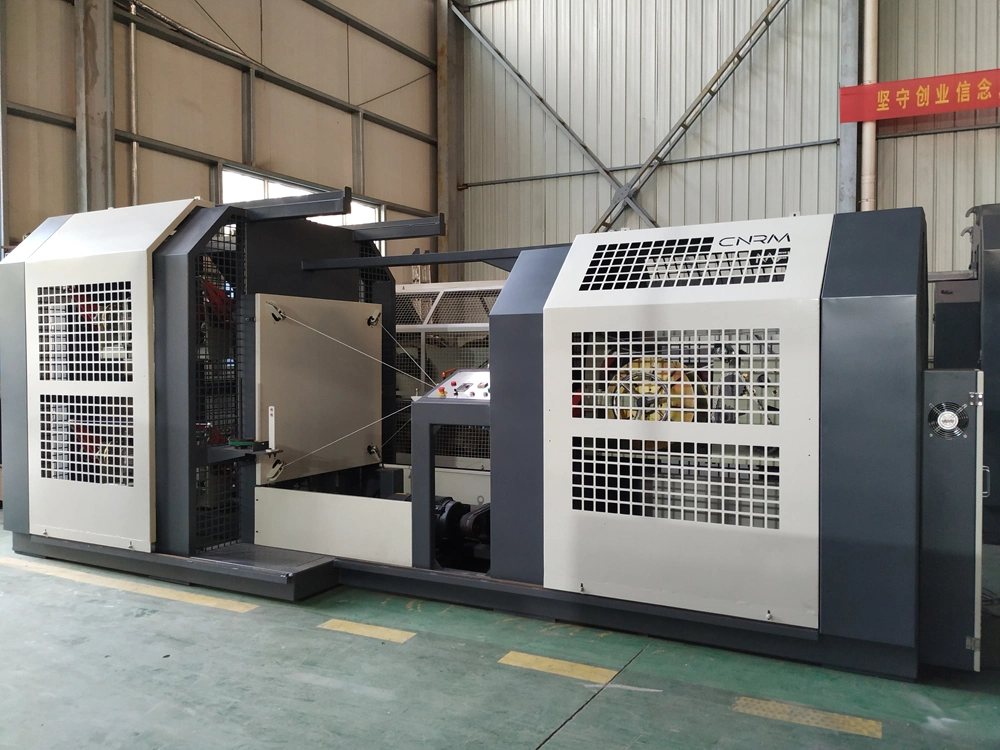

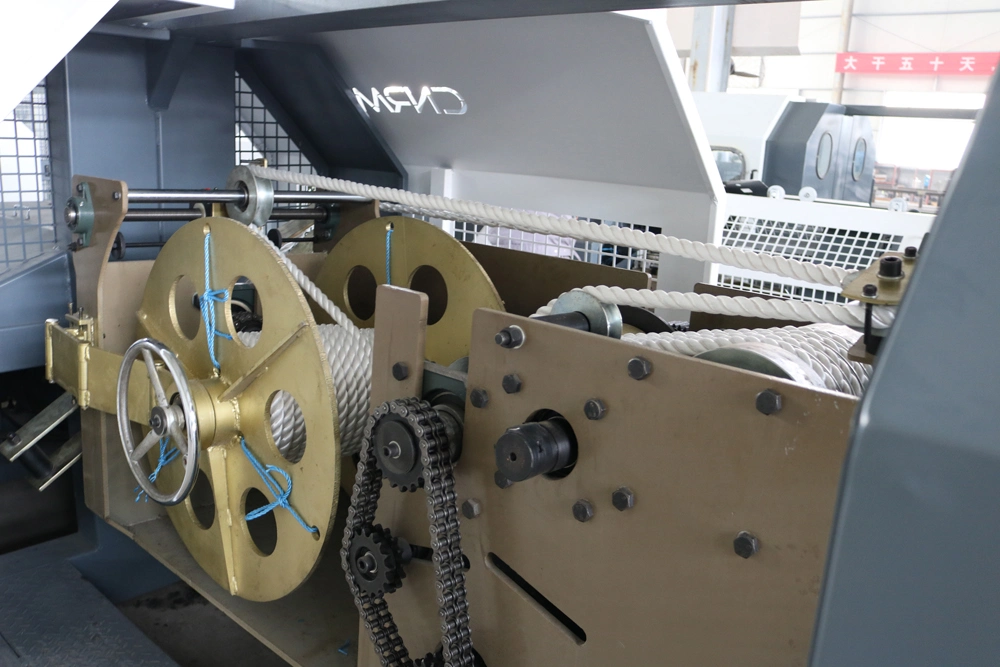

Detail photos :
Contact Person :
Rope Making Machine are available in 3 and 4 strands rope with diameters from 3mm-32mm in different models. we can manufacture any models of Rope Making Machines as per the requirement and the specifications of our valued customers. Ropes can be Made from HDPE Monofilament, PP Tape, PP Multifilament, Nylon, Cotton, Polyester, Synthetic Yarns, Manila in one continuous operation.
Item | HDTM-22 | HDTM-33 | HDTM-44 | HDTM-55 | HDTM-66 | HDTM-77 | ||||||||||||
Rope range | 3-6mm | 4-10mm | 6-14mm | 12-20mm | 20-26mm | 22-32mm | ||||||||||||
Lay range | 18-30mm | 15-38mm | 20-50mm | 32-78mm | 40-105mm | 83-121mm | ||||||||||||
Power | 3kw | 5.5kw | 7.5kw | 11kw | 18.5kw | 20kw | ||||||||||||
Take-up capacity | Ø130* Ø 350* 255 mm | Ø 130* Ø 350* 255 mm | Ø 130* Ø 350* 255 mm | Ø 130* Ø 350* 255 mm | Ø 130* Ø 350* 255 mm | Ø 130* Ø 350* Ø 255 mm | ||||||||||||
Size of pay off bobbin | 175*430mm | 175*430mm | 175*430mm | 175*430mm | 175*430mm | 175*430mm | ||||||||||||
Qty of 8'' bobbin | 4 | 10*4 or10*3 | 20*4 or 20*3 | 32*4 or 32*3 | 48*4 or 48*3 | 64*3 or 64*4 | ||||||||||||
Machine size | 2.0*0.95*1.2m | 4.0*1.7*1.85m | 7.7*2.3*2.2m | 9.0*2.2*2.3m | 12*2.4*2.35m | 16*2.5*2.4m |
Main Features :
High productivitySprocket drive
Rigid construction
Direct coiling head winding
With digital length counter meter
Door sensor, protective door with steel wire mesh
Low noise level, Low maintenance, Easy operation system
Surface of parts are bluing and with plating treatment.
Thermal refining for shaft parts, quenching treatment for gear and sprocket wheel.
Detail photos :
